Mixed Tiles

Technical Details

Render Engines Compatibility: Cycles/eevee
Requires Displacement: No
Requires UVs: Yes
Processing/Complexity: 1/3
Can be baked: Yes (How to bake materials)

Parameters

▼TILES SHAPE
Tiles Size Y: Tile width (relative to the material scale)
Tiles Size X: Tile height (relative to the material scale)

▼TILES SURFACE
Color 1: Main tiles color
Color 2: Small tiles color
Color Variation: Makes each tile a bit different in color
Roughness: Tiles roughness

▼MORTAR
Mortar: Mortar thickness
Mortar Color: Mortar color

▼DETAILS
Dirt Color: Dirt Color
Dirt Factor: Increases the amount/intensity of dirt
Rustic: Adds details to make the tile look more rustic (small defects, bumps, roughness variations)
Damage Size: at 0 there will be no damage, increasing this value will gradually add larger damage to the tiles.

▼OTHERS
Scale: overall material scale
Seed: Gives different results using the same parameters
Bump: Multiplier for the bump

Replace Vector (Only visible in the Shader Editor): An input where you can replace the default vector, you can for example plug a UV Map node with a Mapping node or any other texture coordinate.

This is especially useful with materials that require UVs when the surface is not 1:1 ratio and you need to adjust the scale
More about stretched textures & mapping

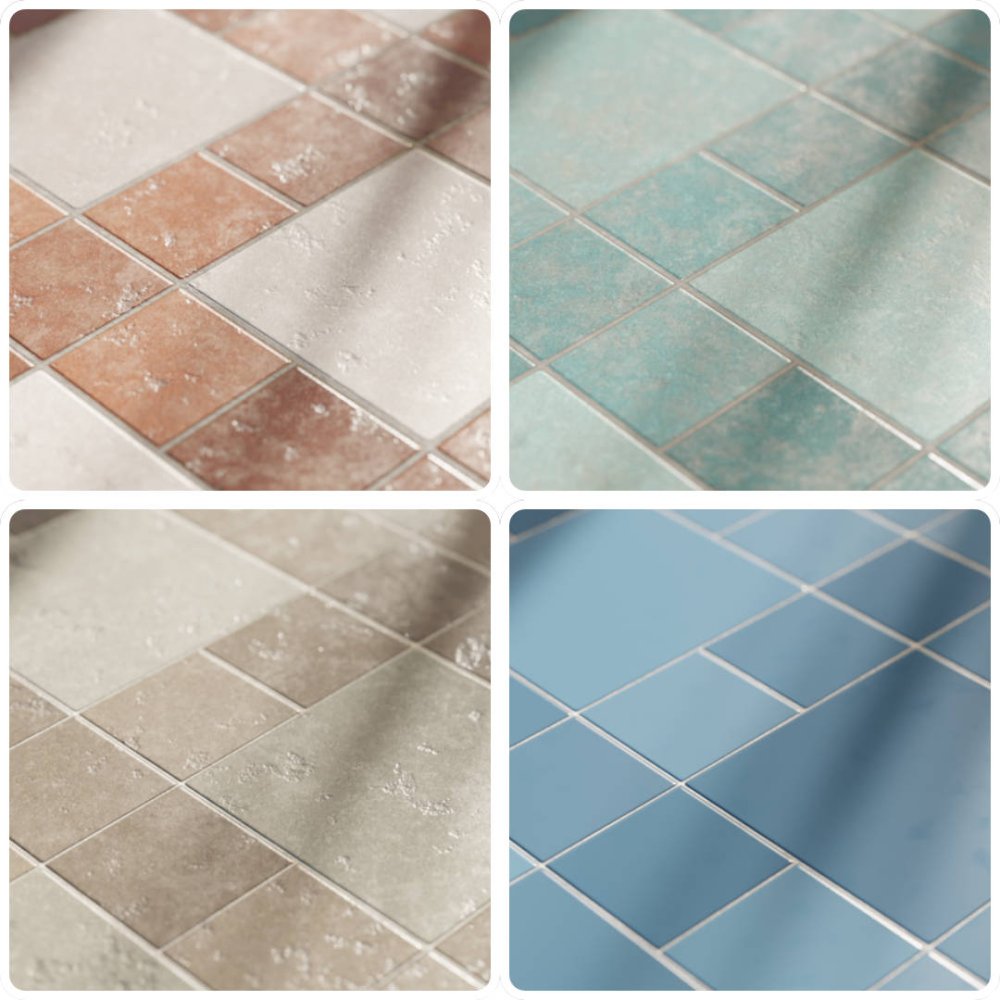

Gallery

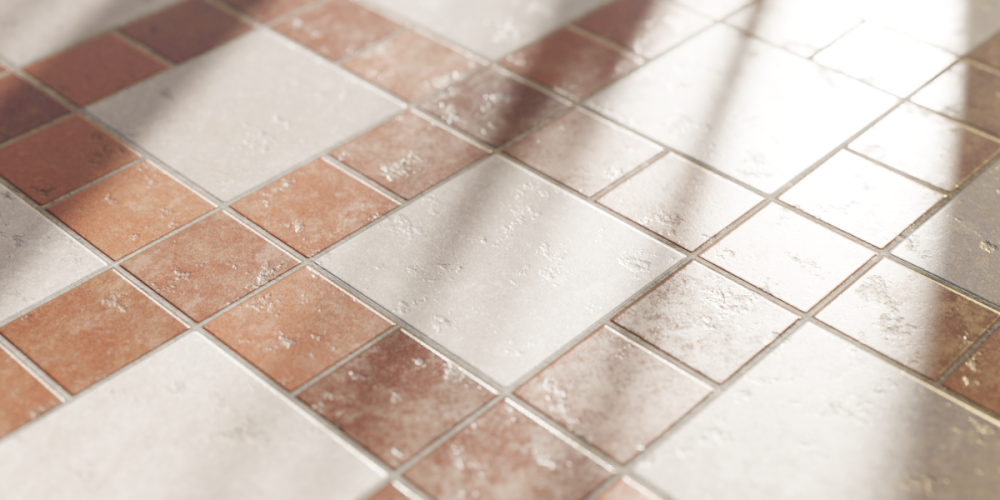

Render by Sanctus

——
